Woodworking circular saw blade mill vertical cutting wood machine for boards/timber cutting

Place of Origin : shandong province

Brand Name : SH

Certification : ISO

Model Number : TT1500, TT2000,TT3000,CT1500,CT3000

MOQ : 1 SET

Price : US $3,000 - 9,800 / Set

Packaging Details : iron made frame pallet

Delivery Time : within 15 days

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000sets/year

Condition : New

Type : Circular Saw

Use : Woodworking

Style : Vertical

Voltage : 380v/3phase/50hz or as customer needs

Power(W) : 7.5kw x 2 or 11kw x 2

Warranty : 1 Year

Cutting max. dia. : 48CM

Operation : manual or digital auto control

Motor power : Electric or diesel engine

Contact Now

Twin Blades Circular Sliding Table Sawmill- Computer type
The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
The circular saw blade can avoid band saw blade bending,or dig hole on wood.
The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
The production capacity is more than 4 timers than band sawmill.
The specification is adjustable,Convenient to move the running rule,accuracy.
The track use linear guideway,accuracy,no error,wear resistent.
The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.
Technical Specifications:

Model	CT1500	CT2000	CT3000
Max. saw log diameter:	400mm	400mm	400mm
Max. log length:	1500mm	2000mm	3000mm
Circular blade diameter:	500mm	500mm	500mm
Saw motor	7.5kw x 2	7.5kw x 2	7.5kw x 2
Rail length	3500mm	5000mm	6500mm
Wood fasten type	pneumatic up/down
Carriage rail	linear axis	linear axis	linear axis
Feeding type	frequency variable speed adjustable
Set sawn dimensions	Touching screen auto setworks

Woodworking circular saw blade mill vertical cutting wood machine for boards/timber cutting
Heavy Duty Twin Blades Wood Circular Sawmill with Log Carriage- manual type

Model	TT1500	TT2000	TT3000
Max Sawing Wood Diameter	400mm	400mm	400mm
Max Sawing Wood Length	1500mm	2000mm	3000mm
Saw Blade Diameter	500mm	500mm	500mm
Motor Power	7.5KW*2	7.5KW*2	*7.5KW2**
Rail Length	3500mm	5000mm	6500mm
Wood Fasten Model	Pneumatic	Pneumatic	Pneumatic
Carriage Rail Model	Linear Axis	Linear Axis	Linear Axis

Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.Can increase motor power as customer needs .
Woodworking circular saw blade mill vertical cutting wood machine for boards/timber cutting

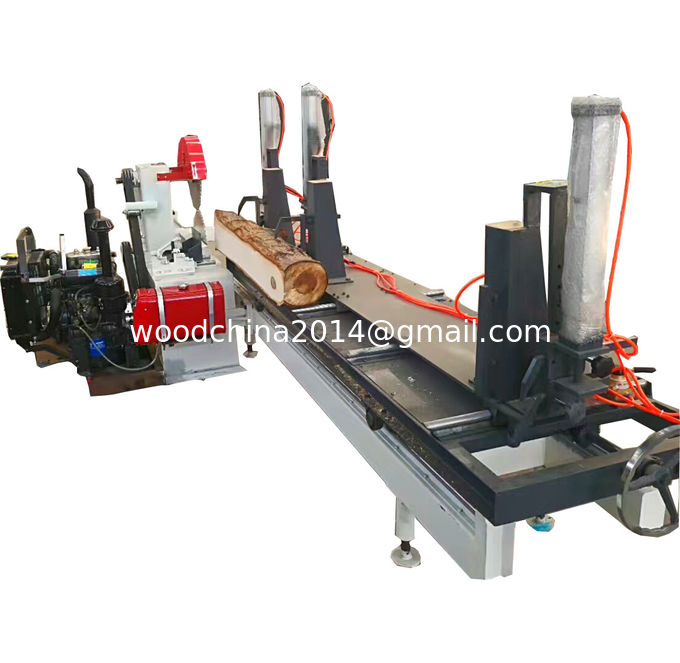

Heavy duty twin blades circular saw with log carriage-Diesel Engine Powered

model	TTD400-1500	TTD400-2000	TTD400-3000
Cut log max. diameter	40 cm	40 cm	40 cm
Cut length	1.5m	2m	3m
Blade diameter	500mm	500mm	500mm
Diesel engine, electric start	40HP	40HP	40HP
Track length	3500mm	5000mm	6500mm
Log clamping	pneumatic	pneumatic	pneumatic
Movement of carriage	manually	manually	manually
Carriage Rail Mode	Linear Axis	Linear Axis	Linear Axis

Woodworking circular saw blade mill vertical cutting wood machine for boards/timber cutting
