SHBH500-4 Wood Shaving Making Machine Wood Shaving Processing Equipment For Animal Bedding

Product Categories

Weifang Jiuyi Information technology co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : SHBH500-2,SHBH500-4,SHBH500-6

MOQ : 1 SET

Price : US $3,900 - 19,800 / Set

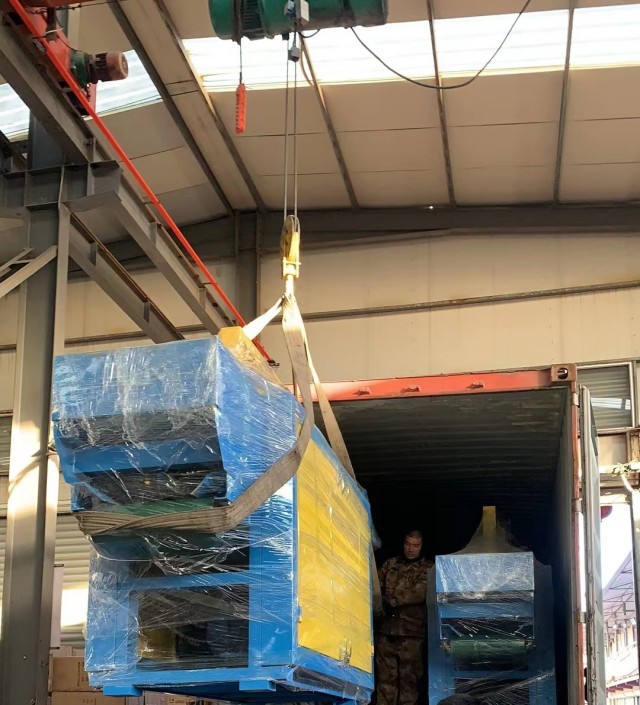

Packaging Details : wooden pallet or iron frame packings

Delivery Time : within 20 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1000sets/year

Product name : Sawdust Animal Bedding Wood Shaver Machinery

Production Capacity : 1000kg/hour

Max width of wood : 500mm

Max length of wood : 1400mm

Blade quantity : 16pcs

Type : Widely Used Wood Shaver,wood shaving machine

Usage : making wood shavings for animal bedding,animal bedfillings

Keywords : wood shaving machine,Wood Log Shaver,shaving mill

After-sales service provided : Online support,Video technical support,Free spare parts

Warranty : 12 months

Contact Now

Wood Shaving Machine

Processing raw materials :Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.

Technical Specifications:

Model	SHBH500-2	SHBH500-4	SHBH500-6
Processing wood max. length(mm)	800	1400	1400
Processing max. width/diameter(mm)	500	500	500
Shaft quantity	2	4	6
Blade (pcs)	8	16	24
Motor speed (rpm)	3500	3500	3500
Bin length (mm)	800	1400	1400
Total Motor power (kw)	10.5KW	23.25KW	30.75KW
Shaving depth (mm)	0.2-1	0.2-1	0.2-1
Shavings output	500KG/H	1000KG/H	1500KG/H
Machine weight	950kgs	1800kgs	2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

Detailed Image

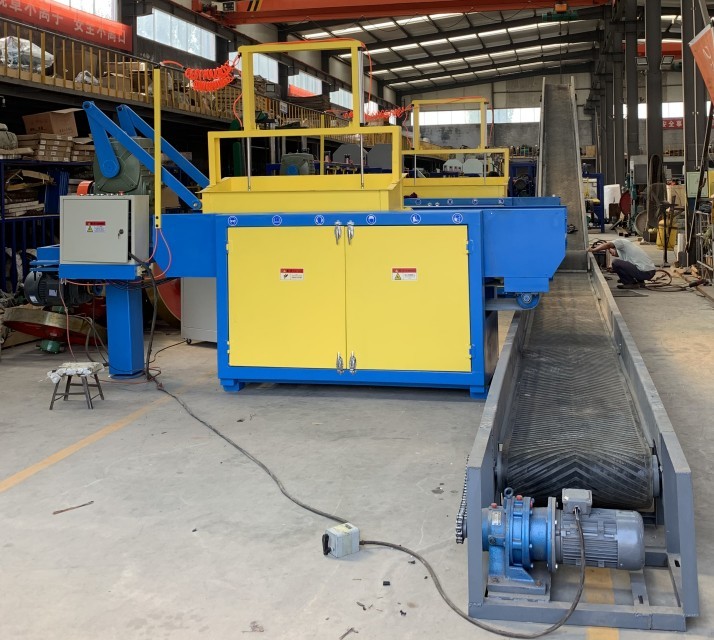

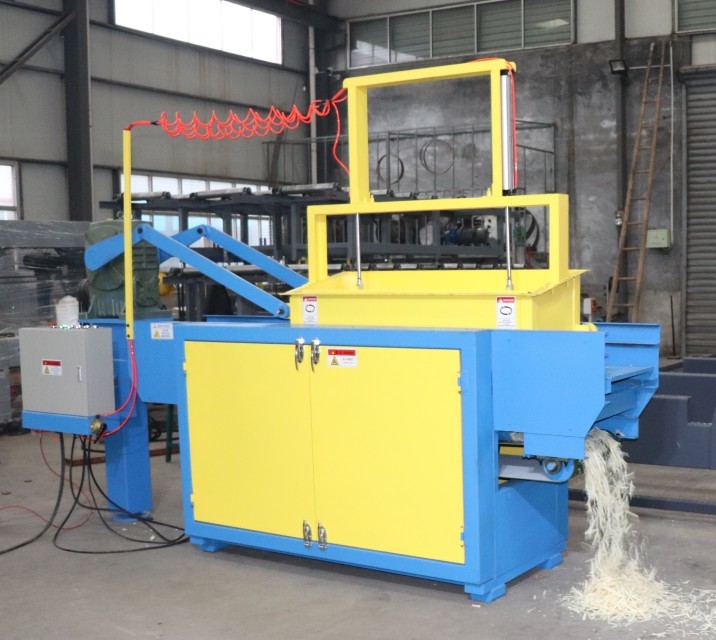

Model SHBH500-6, SHBH500-4
