Electric Industrial used multi head horizontal resaw band saw machine

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : DT300-1,DT300-2,DT300-3,DT300-5,DT300-6

MOQ : 1 SET

Price : US $10,500-37,700 / Set

Packaging Details : container loading

Delivery Time : within 15 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 500 Sets/Year

Condition : New

Type : Band Saw

Use : Woodworking

Style : Horizontal

Usage : wood sawing

Voltage : 380v,50HZ/3phase or as customer needs

Power(W) : 11kw x 3, 11kw x 5sets, 11kw x 6sets

Warranty : 12 months

After-sales Service Provided : Engineers available to service machine overseas

Sawn thickness setting mode : PLC touching screen auto setworks

Feeding : Frequency variable conveyor auto feeding

Contact Now

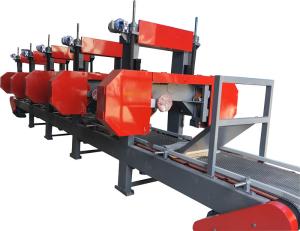

Multiple Heads Horizontal Resaw Band Saws

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

Main Features:

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Electric Industrial used multi head horizontal resaw band saw machine

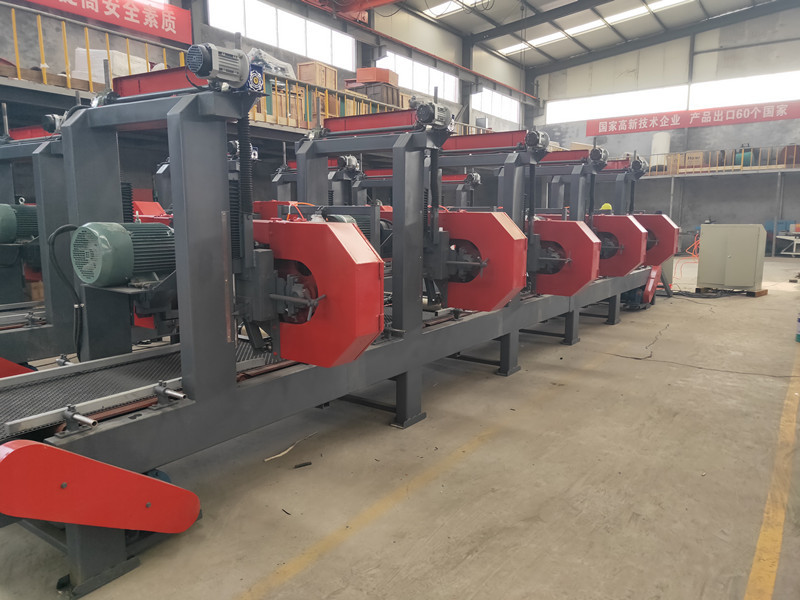

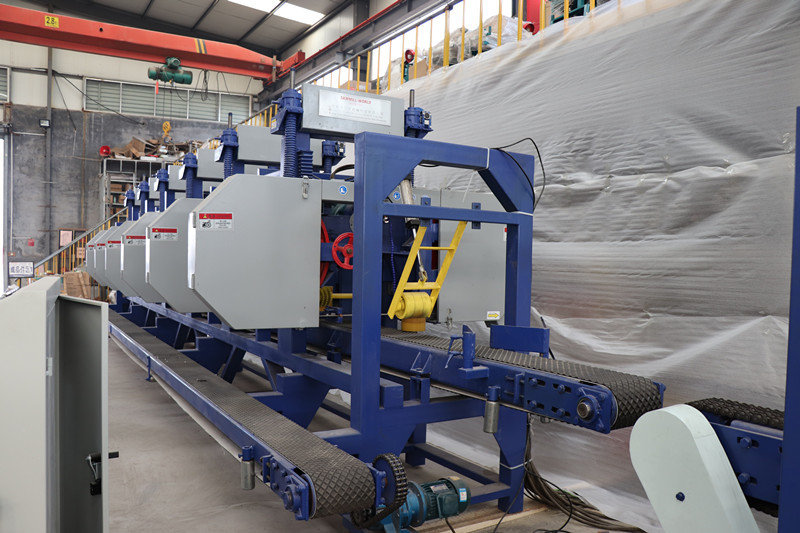

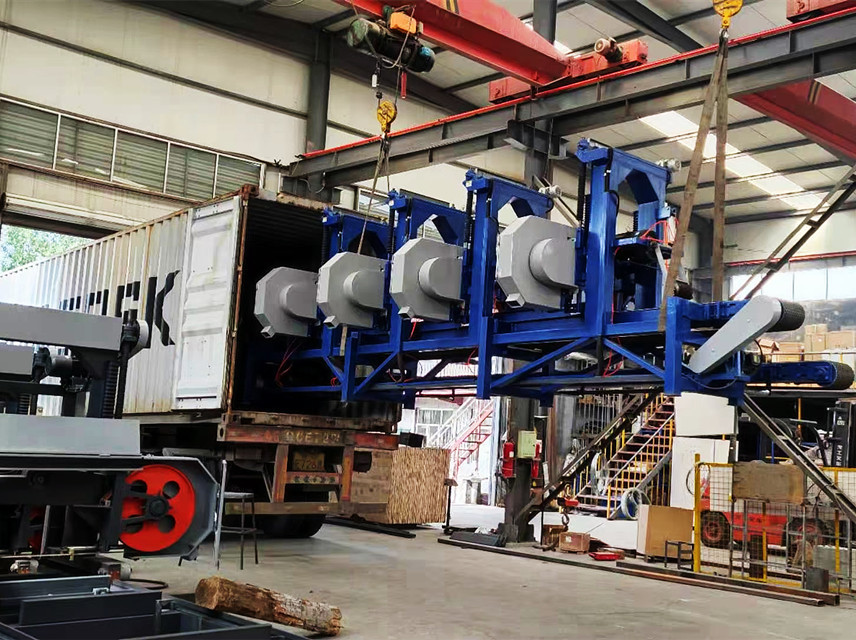

Electric Industrial used multi head horizontal resaw band saw machine Images
